Ecowarm offers high quality CAD board layout services through:
Monterey Energy Group
Consulting Mechanical Engineers
227 Forest Avenue · Suite 5
Pacific Grove, CA 93950
831-372-8328 · voice 831-372-4613 · fax
email: cad@ecowarm.us
Ecowarm board and tubing layout:
Ecowarm has negotiated special rates which generally are for tubing and board layout be sure tyo ask for the "Ecowarm special rates"
•under 1600 square feet $400.00
•over 1600 square feet 25¢ a square foot
Other more complete services are available:
•energy calcs •mechanical room layout •mechanical design consulting
•solar and net zero design services
complete design services for radiant sytems are available and include:
-
Plan view of tubing layout
-
Heat load calculation
-
Complete heat source installation schematic including component sizing and specifications
-
Manifold and tubing installation details
-
System installation notes
-
Complete system balancing data
-
List of materials
other fees may apply to digitizing plans, printing and consulting

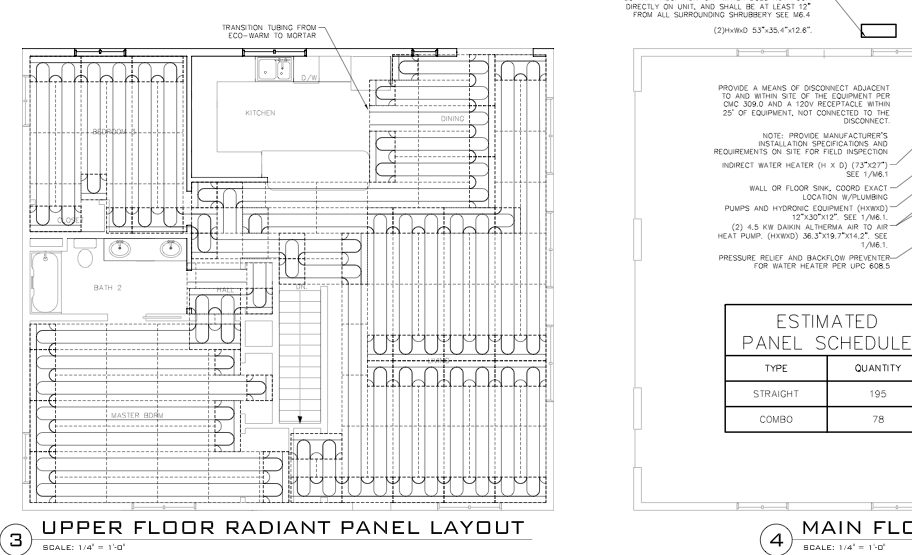

portion of sample layout shown below, to download sample more complete plans click here:
or go to http://www.ecowarm.us/ecowarm/shoppingcart/literaturePDFs/SampleHouse.pdf
